Detailed content
Specification parameter
Product packaging
| STEEL PLAIN BARS 圆钢 |
|
|
|

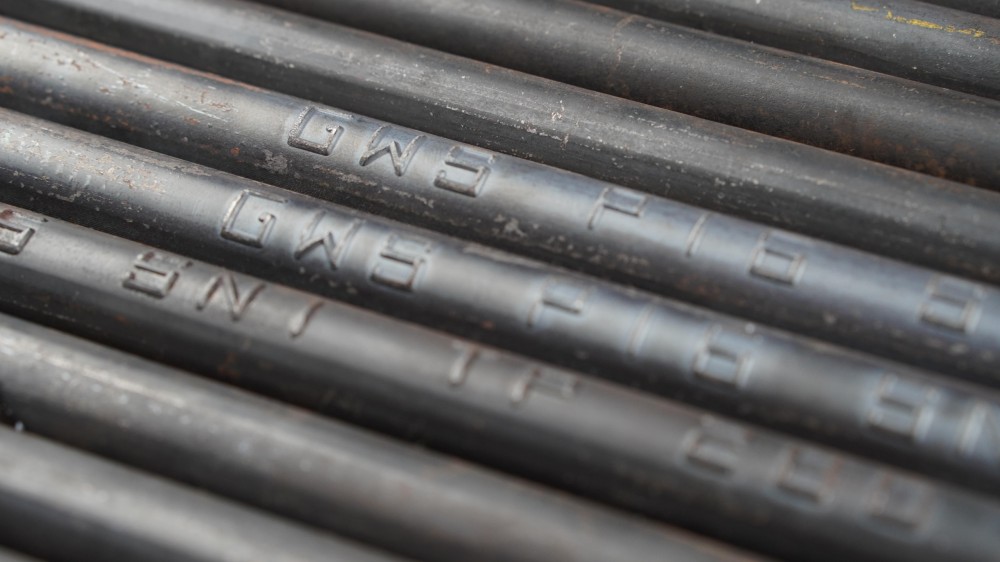

STEEL PLAIN BARS
光圆钢筋 |
Code No.
代码 | Nominal Diameter
公称直径 (mm) | Tolerance
公差 (mm) | Nominal Mass
标称质量 (kg/m) | Cross Sect Area
横截面面积 (mm²) | Ovality Max
最大椭圆度 (mm) |
| p8 | 8 | ±0.4 | 0.395 | 50 | 0.56 |
| p10 | 10 | ±0.4 | 0.617 | 79 | 0.56 |
| p12 | 12 | ±0.4 | 0.888 | 113 | 0.56 |
| p16 | 16 | ±0.5 | 1.578 | 201 | 0.70 |
| p19 | 19 | ±0.5 | 2.226 | 284 | 0.70 |
| p22 | 22 | ±0.5 | 2.884 | 380 | 0.70 |
| p25 | 25 | ±0.5 | 3.853 | 491 | 0.70 |
{}
